Apparatus Castor
Range

Series 367 swivel top plate with TPR wheel available in size 80mm, 100mm, 125mm, 150mm and 200mm

Series 367 swivel with total brake system, top plate with TPR wheel available in size 80mm, 100mm, 125mm, 150mm and 200mm

Series 367 swivel with total brake system, bolt hole with ESD wheel available in size 80mm, 100mm and 125mm

Apparatus Castors

367 Series

Also available in stem and threaded stem fittings, zinc plating, chrome finishing and powder coated finishing in different colours.

For customized products, feel free to contact us at (+60)17-4091118 or email to [email protected]

367H35K125AZ622 (BLACK TG)

Swivel with total brake system, friction ring stem fitting with ESD wheel black thread guard

Diameter X Width Hub Width X Bolt Load Height Stem Load Capacity
(mm) (mm) (mm) (mm) (kg)
80 80 x 30 41 x 8 110 55 80
100 100 x 30 41 x 8 130 55 100
125 125 x 32 41 x 8 155 55 100
150 150 x 32 41 x 8 185 55 120
200 200 x 32 41 x 8 227 55 150
367AO9F125VZLD M12

Swivel threaded stem fitting with dark grey solid rubber wheel

Diameter X Width Hub Width X Bolt Load Height Thread Size Load Capacity
(mm) (mm) (mm) (mm) (kg)
80 80 x 30 41 x 8 110 M12 x 45 80
100 100 x 30 41 x 8 130 M12 x 45 100
125 125 x 32 41 x 8 155 M12 x 45 100

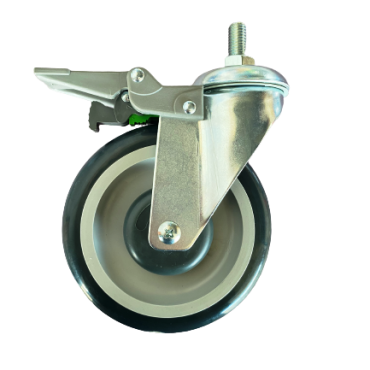

367HO9F125VZLD M12

Swivel with total brake system, threaded stem fitting with dark grey solid rubber wheel

Diameter X Width Hub Width X Bolt Load Height Thread Size Load Capacity
(mm) (mm) (mm) (mm) (kg)
80 80 x 30 41 x 8 110 M12 x 45 80
100 100 x 30 41 x 8 130 M12 x 45 100
125 125 x 32 41 x 8 155 M12 x 45 100
367A68K125VZLD CW

Swivel bolt hole type with escalator wheel

Diameter X Width Hub Width X Bolt Load Height Bolt Hole Load Capacity
(mm) (mm) (mm) (mm) (kg)
125 125 x 32 41 x 8 155 12 80
