Medical Castor Range

MEDICAL CASTOR

Available in size 80, 100, 125, 150 & 200mmlong stem & short stemWITH WHEEL IN TPR,TPU,ESD CONDUCTIVE MATERIAL

White powder coated

Black powder coated

Chrome finishing

RAL COLOUR Powder coated

Also available in precision bearing swivel head (all sizes)

Medical Central Locking Castors Series GM39-0

Series 390 Central Locking Castors
  • Available in size 80mm, 100mm, 125mm, 150mm and 200mm
  • Available in both long stem and short stem
  • Fixing pins – both fixing pins can be provided with standard 45 Degree Cam or 30 Degree cam

Besides, standard zinc plating, it is also available in Powder Coated finishing with different RAL colours at your choice.

  • Wheel in TPR, TPU and ANTISTATIC are also available

Additions: also available in stem and threaded stem fittings, zinc plating, chrome finishing and powder coated finishing in different colours as well as Antistatic wheels

GLOBUS ROLLEN Technical Aspects of Hospital Bed Casters and the Correct Applications

  • Quality complying to DIN 12531 standards
  • Various finishing in Zinc, Nickel, Chrome, powder coating and etc.
  • Various colour possible on plastic covers as per RAL colour code
  • Centrally lockable bed castors available in direction lock & total lock position
  • Excenter unit (switching shaft) available in both D-Shape and Hexagon shape
  • Position of the bar to the travel direction available in across and along
  • Various choice of wheels i.e, TPU & TPR, rubber and also anti-static
  • Castors available in both double bearing and precision bearing
  • Permanently grease filled in the switching mechanism
  • Various attachment structures available

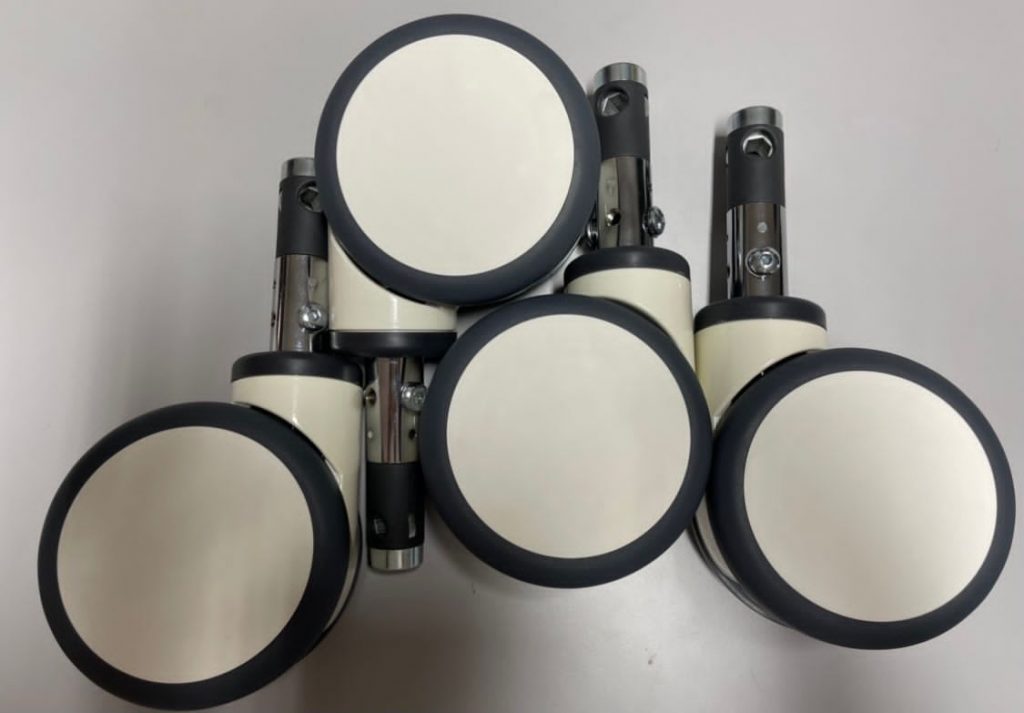

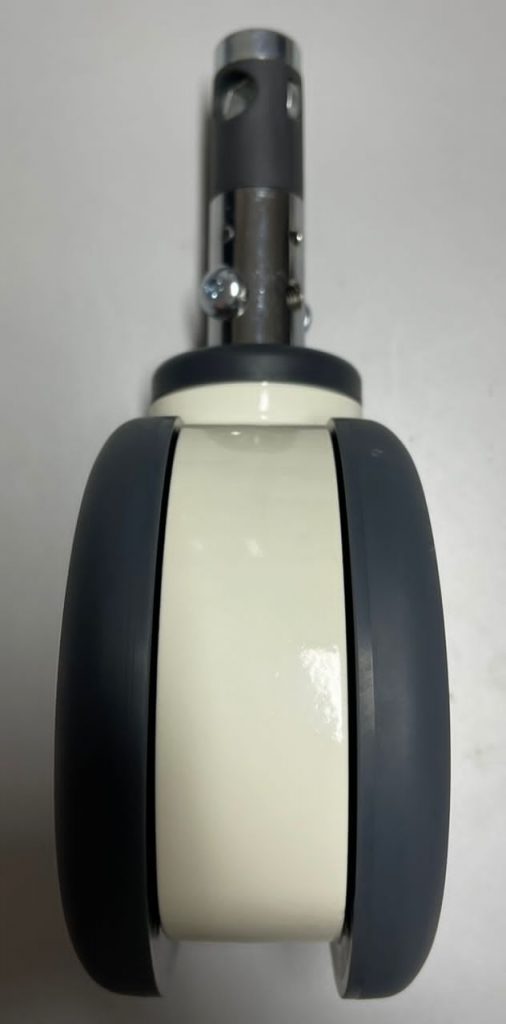

MEDICAL CASTOR WITH POWDER COATED FINISHING

Available in size 80, 100, 125 & 150mm
long stem & short stem

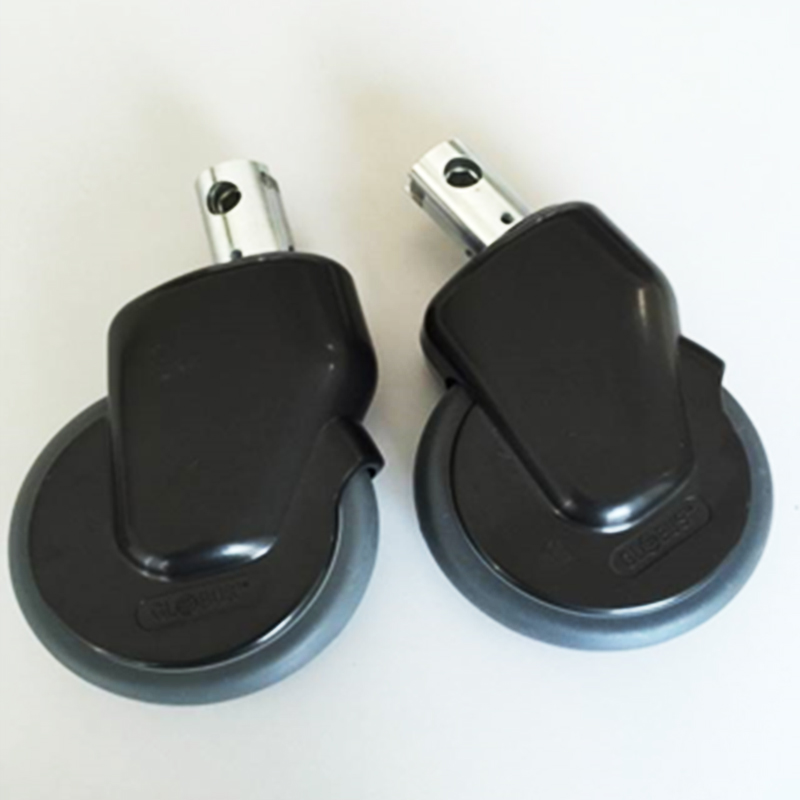

MEDICAL CASTOR WITH PLASTIC COVERS

Available in size 80, 100, 125 & 150mm, long stem & short stem

Medical Central Locking Castors Series GM39-0 with PLASTIC COVERS

  • Our standard colour is RAL 9002 but also available in other colours based on customer request
  • MOQ 2000pcs required for other choice of colours
  • Available size from 80mm, 100, 125mm and 150mm

Additions: also available in stem and threaded stem fittings, zinc plating, chrome finishing and powder coated finishing in different colours as well as Antistatic wheels

3

Long stem without cover

Model number Diameter x  Hub Width x Load Offset Load
Width Bolt Height Capacity
(mm) (mm) (mm) (mm) (kg)
390Q35K080RZ985/2351 80 x 30 42 x 8 113 44 80
390Q35K100RZ985/2351 100 x 30 42 x 8 133 42 100
390Q35K125RZ985/2351 125 x 32 42 x 8 158 44 100
390Q35K150RZ985/2351 150 x 32 42 x 8 184 51 120
390Q35K200RZ985/2351 200 x 32 42 x 8 237 61 120
2

Short stem without cover

Model number Diameter x  Hub Width x Load Offset Load
Width Bolt Height Capacity
(mm) (mm) (mm) (mm) (kg)
390R35K080RZ985/2351 80 x 30 42 x 8 113 44 80
390R35K100RZ985/2351 100 x 30 42 x 8 133 42 100
390R35K125RZ985/2351 125 x 32 42 x 8 158 44 100
390R35K150RZ985/2351 150 x 32 42 x 8 184 51 120
390R35K200RZ985/2351 200 x 32 42 x 8 237 61 120
4

Long stem with cover

Model number Diameter x  Hub Width x Load Offset Load
Width Bolt Height Capacity
(mm) (mm) (mm) (mm) (kg)
390Q35K080RZ985/2351 C 80 x 30 42 x 8 113 44 80
390Q35K100RZ985/2351 C 100 x 30 42 x 8 133 42 100
390Q35K125RZ985/2351 C 125 x 32 42 x 8 158 44 100
390Q35K150RZ985/2351 C 150 x 32 42 x 8 184 51 120
1

Short stem with cover

Model number Diameter x  Hub Width x Load Offset Load
Width Bolt Height Capacity
(mm) (mm) (mm) (mm) (kg)
390R35K080RZ985/2351 C 80 x 30 42 x 8 113 44 80
390R35K100RZ985/2351 C 100 x 30 42 x 8 133 42 100
390R35K125RZ985/2351 C 125 x 32 42 x 8 158 44 100
390R35K150RZ985/2351 C 150 x 32 42 x 8 184 51 120

Medical Central Locking Castors with Precision Bearing on Swivel Head Series GM39-1

Additions: also available in stem and threaded stem fittings, zinc plating, chrome finishing and powder coated finishing in different colours as well as Antistatic wheels

Series 391 long stem swivel with total brake/Directional brake system, with TPR wheel available in size 80mm, 100mm, 125mm, 150mm and 200mm

Series 391 short stem swivel with total brake/Directional brake system, with TPR wheel available in size 80mm, 100mm, 125mm, 150mm and 200mm

Short stem swivel with total brake

Model number Diameter x  Hub Width x Load Offset Load
Width Bolt Height Capacity
(mm) (mm) (mm) (mm) (kg)
391R35K080RZ985/2351 80 x 30 42 x 8 113 44 80
391R35K100RZ985/2351 100 x 30 42 x 8 133 42 100
391R35K125RZ985/2351 125 x 32 42 x 8 158 44 100
391R35K150RZ985/2351 150 x 32 42 x 8 184 51 120
391R35K200RZ985/2351 200 x 32 42 x 8 237 61 120

Long stem swivel with total brake

Model number Diameter x  Hub Width x Load Offset Load
Width Bolt Height Capacity
(mm) (mm) (mm) (mm) (kg)
391Q35K080RZ985/2351 80 x 30 42 x 8 113 44 80
391Q35K100RZ985/2351 100 x 30 42 x 8 133 42 100
391Q35K125RZ985/2351 125 x 32 42 x 8 158 44 100
391Q35K150RZ985/2351 150 x 32 42 x 8 184 51 120
391Q35K200RZ985/2351 200 x 32 42 x 8 237 61 120

5" Twin Wheel Plastic Castor

Series 385 Twin Wheel Plastic Castor

For solid, strength and durability performances

Series 385 Twin Wheel Plastic Castor

The Housing

  • Made of full aluminum casting for solid, strength and durability performances
  • Precision bearing on both swivel head and wheel centre to provide a smooth swiveling and quiet performances

The Wheel

  • Robust PA Cover with TPR or PU Wheel Thread for better rollability and smooth ride performances
  • TPU electrically conductive tyre is available
  • Load capacity is 150 KG with standard use applications
  • Available in both LONG STEM & SHORT STEM applications

Sketching details
